Specifications

Brand

JL Audio

Product type

Amplifiers

Collections

JL Audio Accessories

About this product

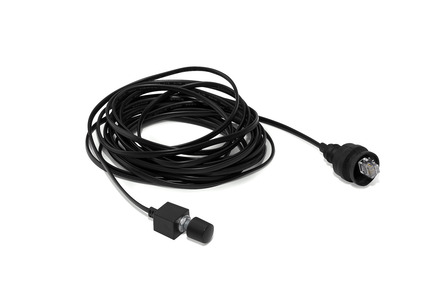

M-RBC-1 Water-Resistant Remote Level Control for MX Monoblock Amplifiers or any JL Audio Monoblock with a “Remote Bass Control” port. The M-RBC-1 controls the Bass Level and features a water resistant connection cover designed for use with the following JL Audio amplifiers: MX-Series: MX300/1 (in Low Pass Mode)MX-Series: MX500/1 (in Low Pass Mode)HX-Series (discontinued): HX300/1 (in Low Pass Mode)MHX-Series (discontinued): MHX300/1 (in Low Pass Mode) The M-RBC-1 controls the Bass Level of the following JL Audio amplifiers: JX-Series: JX250/1, JX500/1, JX500/1D, JX1000/1D (RBC-1 also available) When the M-RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle. The M-RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers: Slash v3 Series: 600/1v3, 1200/1v3Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2Original Slash Series: 500/1, 1000/1, 450/4, 500/5G-Series: All ModelsA-Series: All Modelse-Series: All Models (including marine versions)M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600 When the M-RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller. The M-RBC-1 rotary control is IPX6 water-resistant (splash-proof, not submersible) and includes a black ABS knob, mounting hardware and one 16.4 ft (5 m) cable. A satin-finish aluminum knob can be purchased separately.

Installation tips

• Size power and ground wire to the amp's current draw and fuse it within 18 inches of the battery.
• Keep the ground short (under 18 inches) to bare metal on the chassis.
• Set gains with test tones or an oscilloscope — the gain knob is not a volume knob.
• Mount it where it can breathe; amplifiers need airflow to stay cool.
