Specifications

Brand

JL Audio

Product type

Amplifiers

Impedance

2 Ω

Channels

4-Channel

Collections

Current Ads, JL Amps

About this product

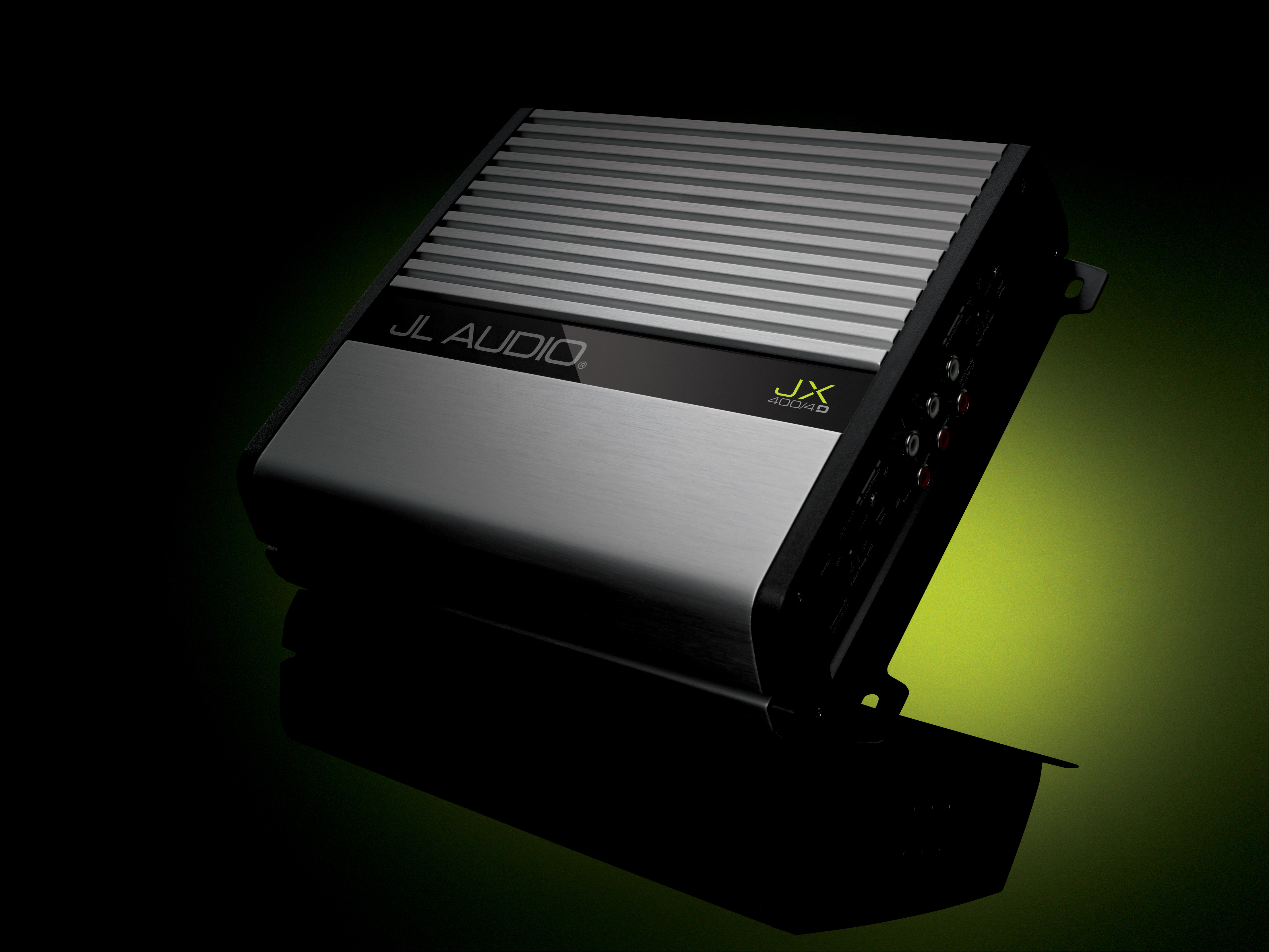

JX400/4D 4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω - 14.4V The JX400/4D employs a highly-efficient Class D design with a robust MOSFET power supply to deliver a strong 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). Use the JX400/4D in combination with our JX500/1D or JX1000/1D monoblocks to build an amazing amplification system at a very affordable price. Or, use the JX400/4D by itself to power two satellites, plus a subwoofer. The JX400/4D includes a defeatable 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.

Installation tips

• Size power and ground wire to the amp's current draw and fuse it within 18 inches of the battery.
• Keep the ground short (under 18 inches) to bare metal on the chassis.
• Set gains with test tones or an oscilloscope — the gain knob is not a volume knob.
• Mount it where it can breathe; amplifiers need airflow to stay cool.
