Specifications

Brand

JL Audio

Product type

Amplifiers

Impedance

2 Ω

Channels

2-Channel

Collections

JL Amps

About this product

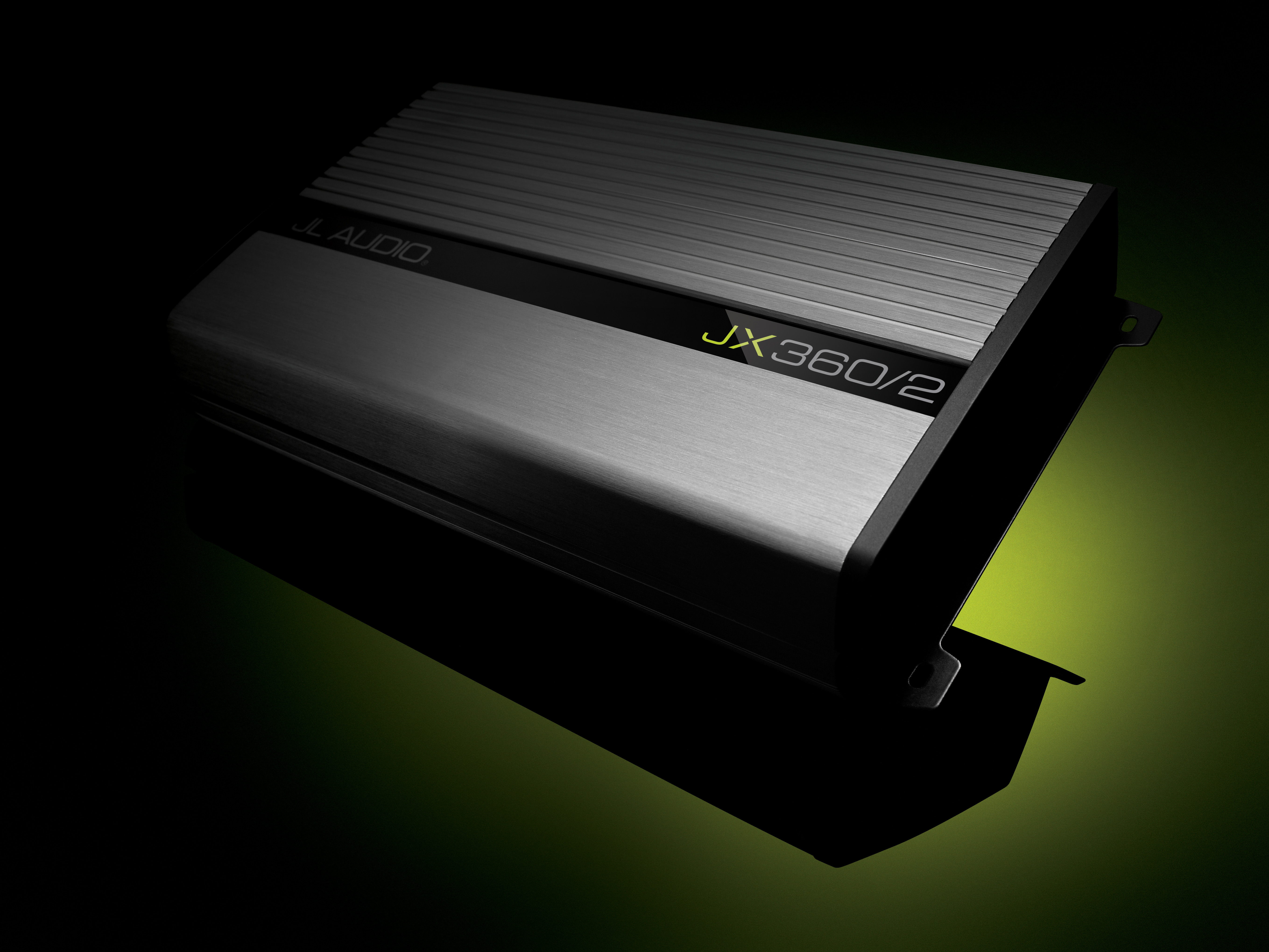

2-Channel Class A/B Full-Range Amplifier, 180 W x 2 @ 2 Ω / 110 W x 2 @ 4 Ω - 14.4V The JX 360/2 is perfect for those seeking a truly powerful, two-channel Class A/B design. Its robust MOSFET power supply keeps things rock-stable to deliver a very strong 180 watts to each of its two channels into 2 ohms (14.4V, 1% THD). This amplifier can also be bridged to produce 360 W x 1 @ 4 ohms (mono). Use the JX360/2 in combination with one of the JX monoblocks to build an amazing amplification system at a very affordable price. The JX360/4 includes a defeatable 12 dB / octave filter, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.

Installation tips

• Size power and ground wire to the amp's current draw and fuse it within 18 inches of the battery.
• Keep the ground short (under 18 inches) to bare metal on the chassis.
• Set gains with test tones or an oscilloscope — the gain knob is not a volume knob.
• Mount it where it can breathe; amplifiers need airflow to stay cool.
