Specifications

Brand

JL Audio

Product type

Subwoofers

Size

12 inch

Impedance

3 Ω

Collections

JL Audio Subwoofers, SUBWOOFER DRIVERS

About this product

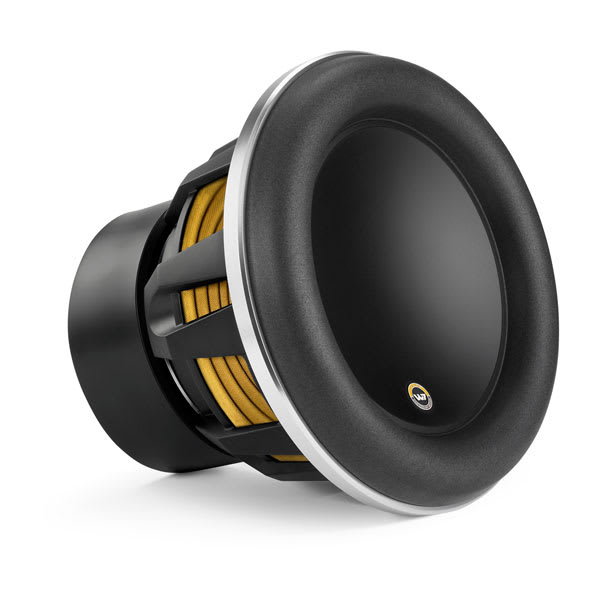

10th Anniversary Edition - W7 12-inch Subwoofer (1000 W, 3 Ω) The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality. This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences: Satin-Black Powdercoated Baskets Bright Anodized Surround Clamp Ring Anniversary Edition Cone Badge Anniversary Edition Terminal Label

Installation tips

• Match the sub's impedance and voice-coil wiring to your amplifier's stable load.
• Use the enclosure volume the manufacturer recommends — box size changes the bass more than anything else.
• Set the amp's low-pass filter around 80 Hz and use the subsonic filter to protect the driver.
• Run a properly sized power and ground wire and secure the box so it can't move while driving.
