Specifications

Brand

JL Audio

Product type

Subwoofers

Size

12 inch

Impedance

Dual 4 Ω

Collections

JL Audio Subwoofers, SUBWOOFER DRIVERS

About this product

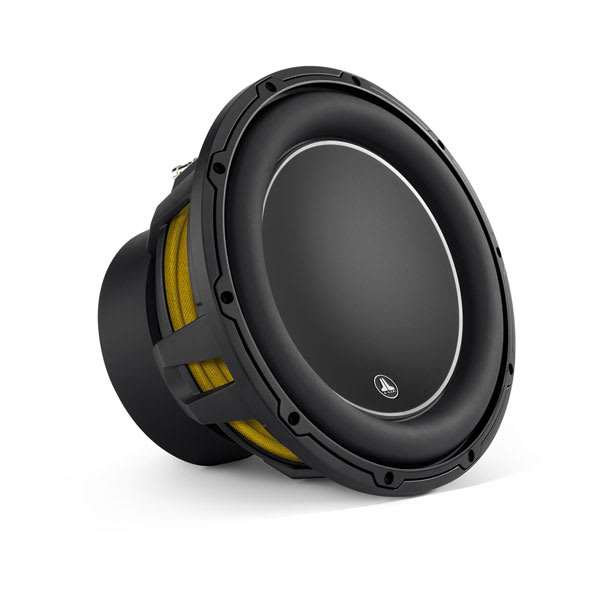

W6v3 12-inch Subwoofer (600 W, dual 4 Ω voice coils) If you are seeking intensely powerful sub-bass that compromises nothing in terms of sound quality, the 12W6v3 is your ultimate ally. This highly advanced Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance. The 12W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. Greater excursion capability and higher power handling distinguish it from our 12W3v3 12-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.

Installation tips

• Match the sub's impedance and voice-coil wiring to your amplifier's stable load.
• Use the enclosure volume the manufacturer recommends — box size changes the bass more than anything else.
• Set the amp's low-pass filter around 80 Hz and use the subsonic filter to protect the driver.
• Run a properly sized power and ground wire and secure the box so it can't move while driving.
