Specifications

Brand

JL Audio

Product type

Amplifiers

Peak power

75 W peak

Impedance

2 Ω

Channels

5 Ch

Collections

JL Amps

About this product

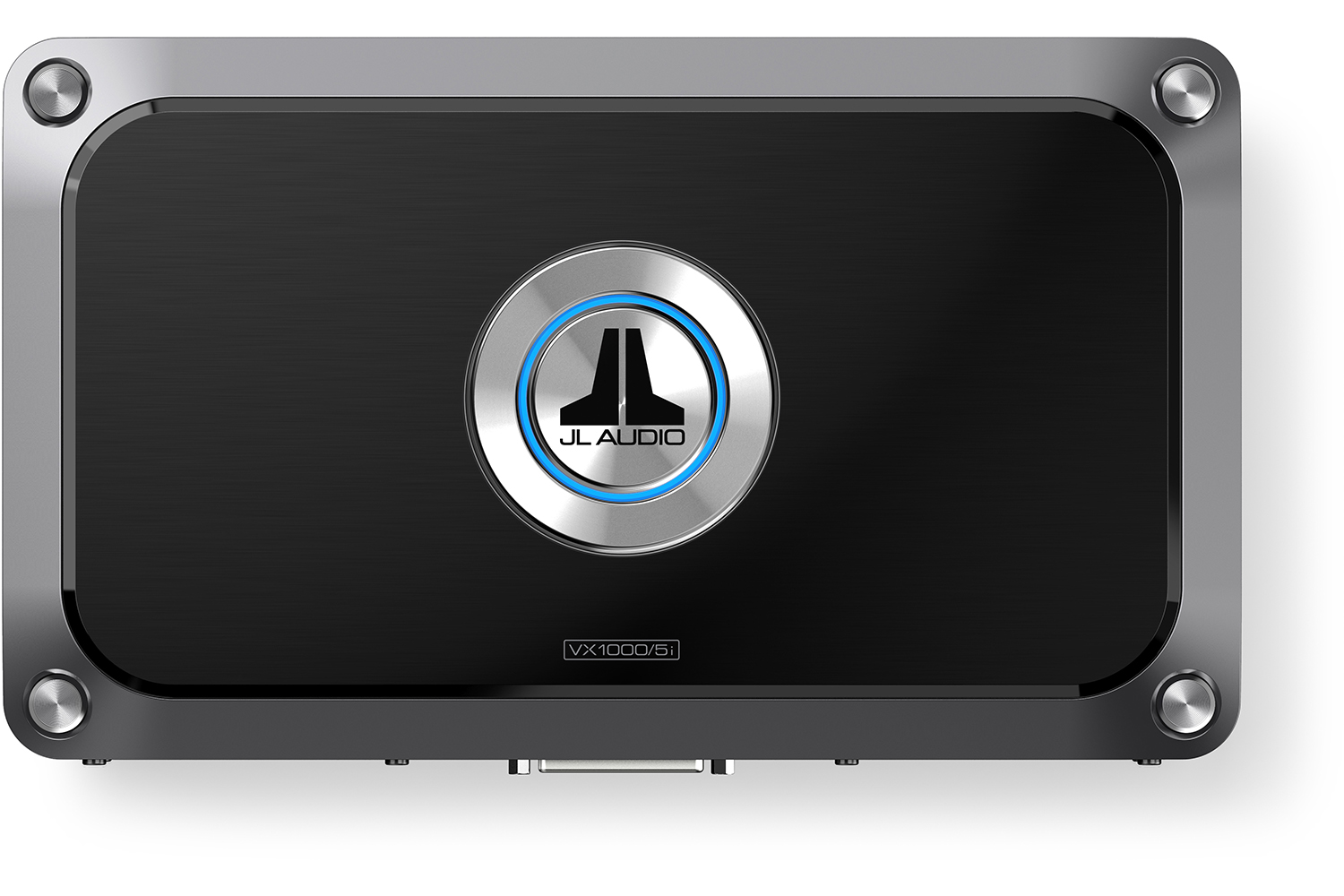

5-Channel Class D System Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. Employing our second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel. The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed. Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Installation tips

• Size power and ground wire to the amp's current draw and fuse it within 18 inches of the battery.
• Keep the ground short (under 18 inches) to bare metal on the chassis.
• Set gains with test tones or an oscilloscope — the gain knob is not a volume knob.
• Mount it where it can breathe; amplifiers need airflow to stay cool.
